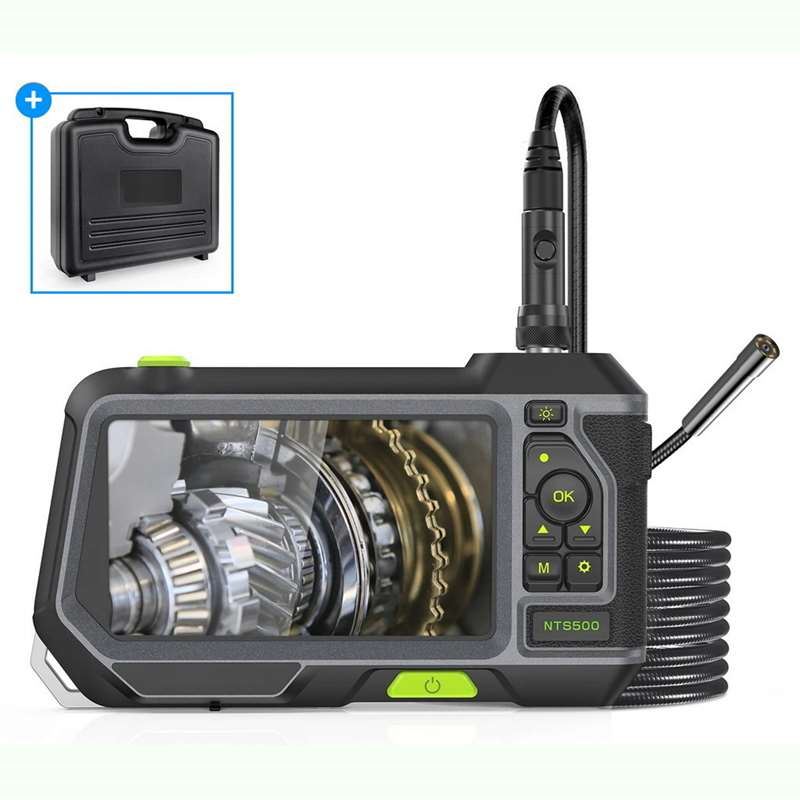

This Cavity Camera and Endoscope is an easy to use, standalone piece of equipment. The dual lenses are a timesaving feature, allowing you to switch quickly and easily from a forward facing view to side view without the need to withdraw the probe.

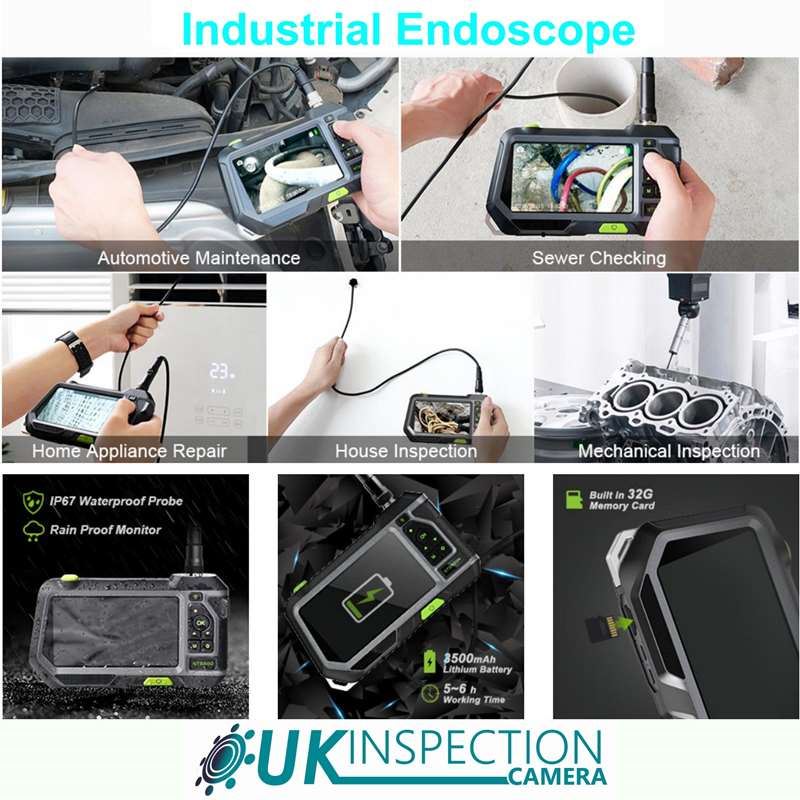

This system is ideal for cavity wall or vehicle inspections, plumbing, electrical installations, HVAC maintenance and more. Record images with a resolution of 1920 x 1080 pixel in jpeg format and videos, using either 1920 x 1080 or 1280 x 720 pixel resolutions in mpeg4 format. The built-in microphone allows you to record sound and voice notes during an inspection.
A 5 inch HD IPS Monitor provides real time viewing whilst the tempered glass screen is shatter and scratch resistant. Images and videos can be stored to the installed 32GB micro SD memory card. The monitor also has a 1W Cree LED flashlight to illuminate workspace. IPS or in-plane switching panel is characterised as having the best colour and viewing angles. A high capacity built-in 3500mAh lithium ion battery provides between 5 and 6 hours operating time.

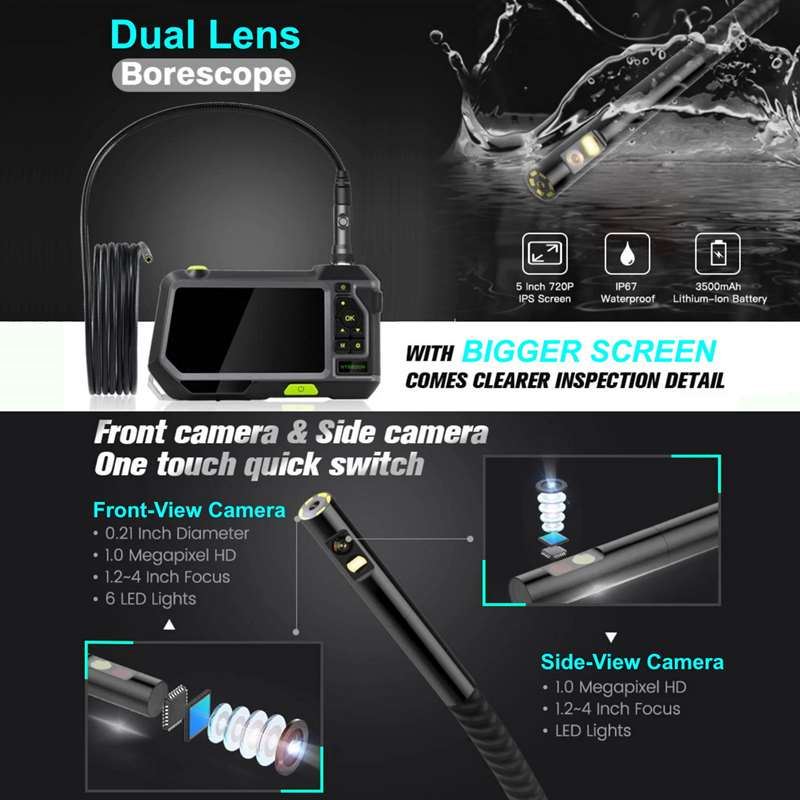

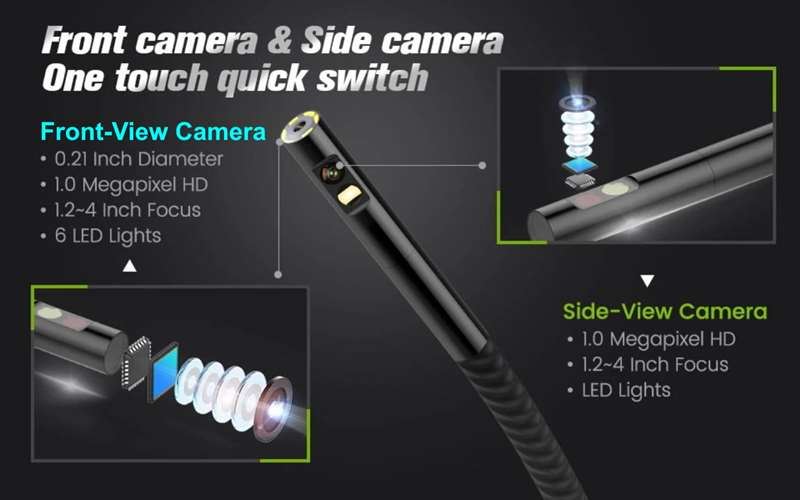

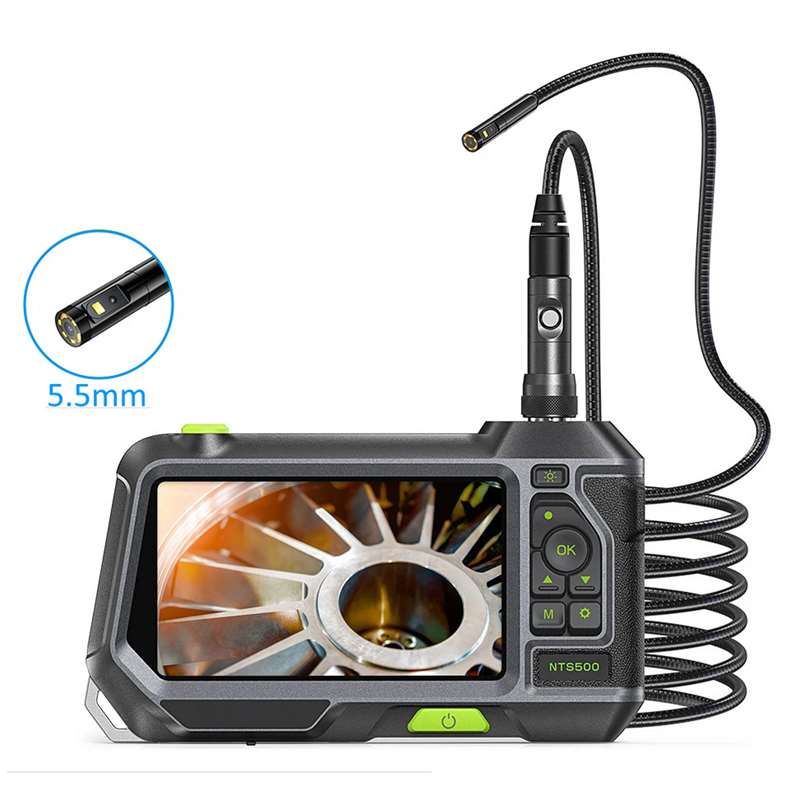

The 1m long probe has a metal cable hosing and has a medium stiffness. The forward facing camera has a 3 to 10cm depth of field and has a ring of 6 adjustable high intensity LEDs to light up the darkest corner. The side view camera has a 1 to 2cm depth of field and also benefits from an LED. The viewing angle is 70°. The probe is rated waterproof to IP67 (a maximum depth of 1m for up to 30 minutes).
What’s in the box?
